Thermik products – powerful thermal protectors and thermistors

Use our product filter to find the suitable temperature limiter for the temperature protection of your component! Our product range includes different types of thermal protectors, which differ in shape and application. The choice ranges from round to flat, pressure-resistant or sealed, to current-independent or current-sensitive thermal protectors. What they have in common, however, is that they offer the highest quality and performance in temperature protection, as they are manufactured using the unique system of Thermik.

CF1

Power class: 1,6 A to 7,5 A
Type series: F1

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

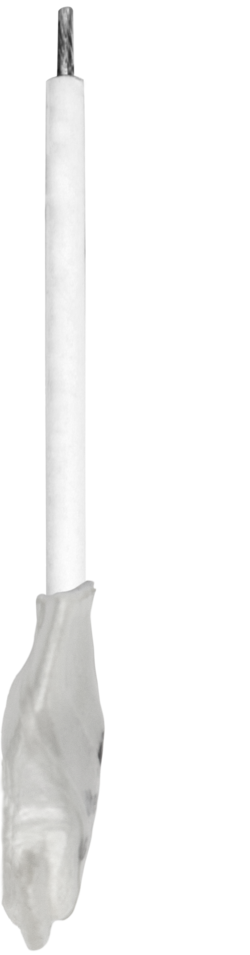

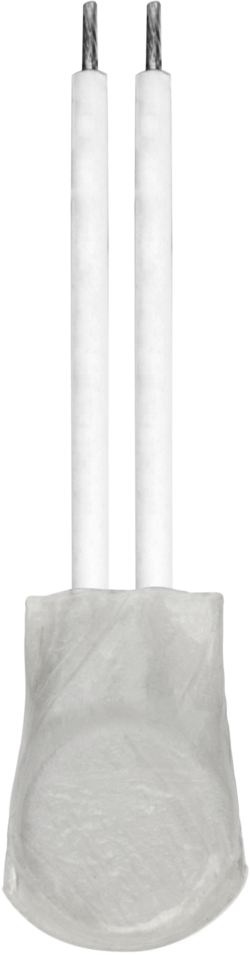

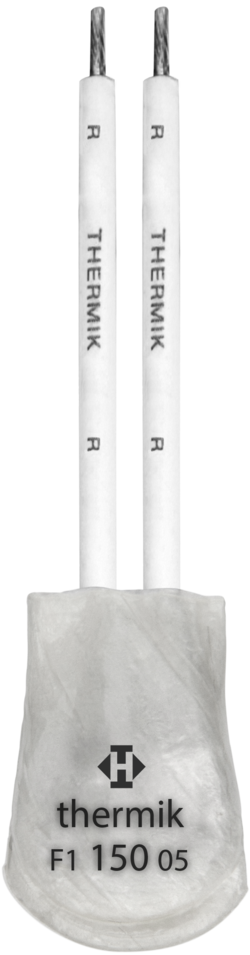

SF1

Power class: 1,6 A to 7,5 A
Type series: F1

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

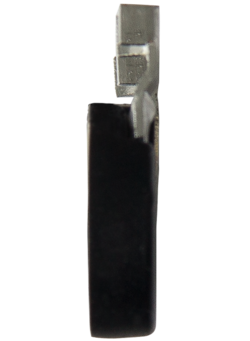

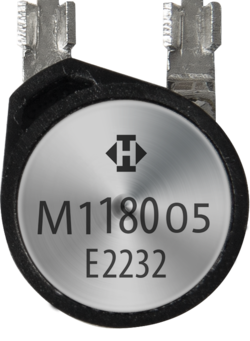

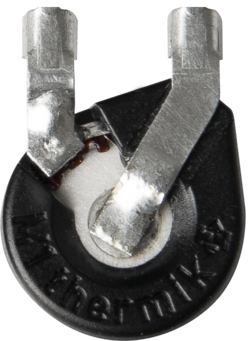

UM1

Power class: 1,6 A to 7,5 A
Type series: F1

  • normally closed
  • resets automatically
  • With crimp/solder connections
  • without insulation

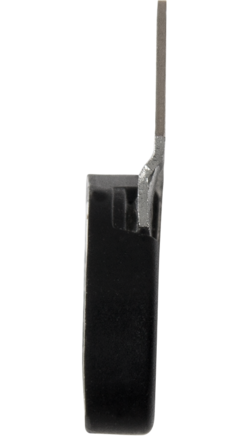

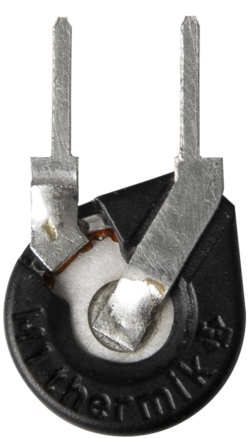

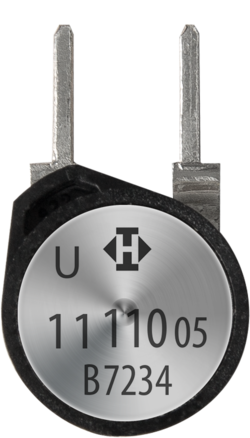

PM1

Power class: 1,6 A to 7,5 A
Type series: F1

  • normally closed
  • resets automatically
  • with plug connections
  • without insulation

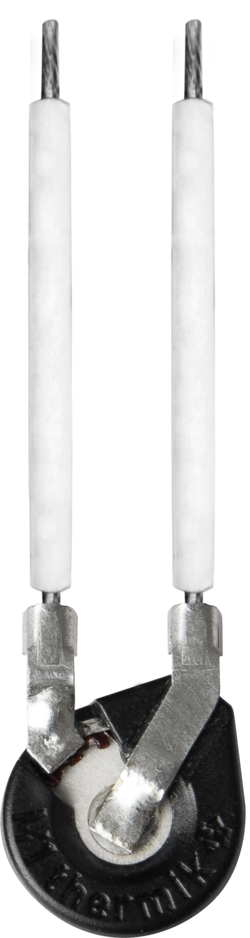

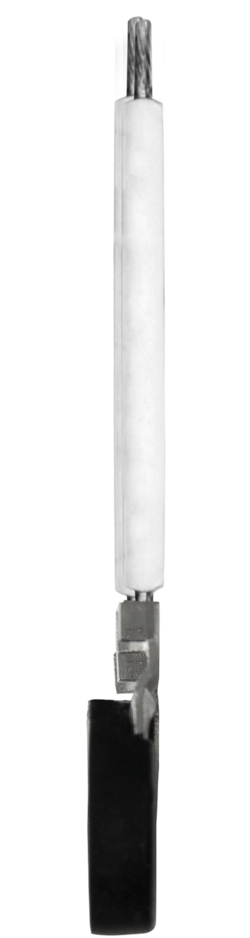

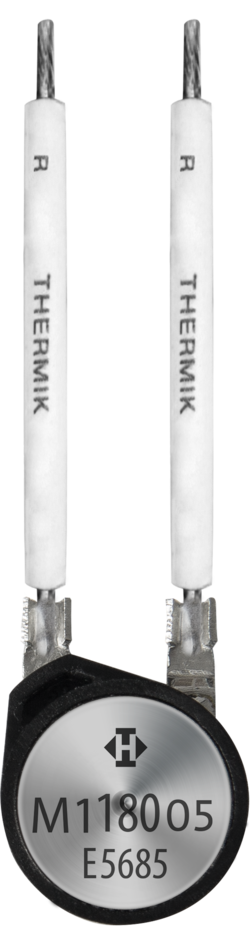

CM1

Power class: 1,6 A to 7,5 A
Type series: F1

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

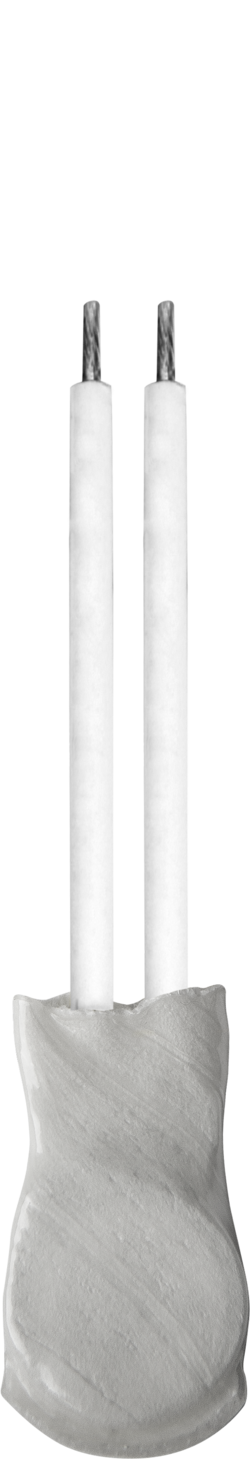

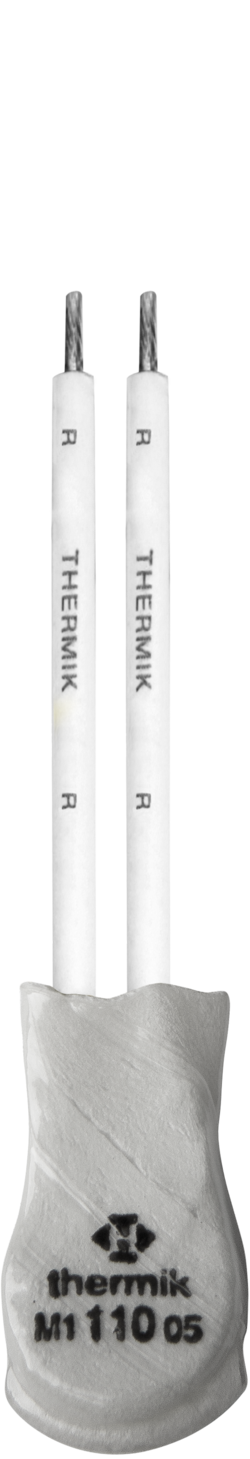

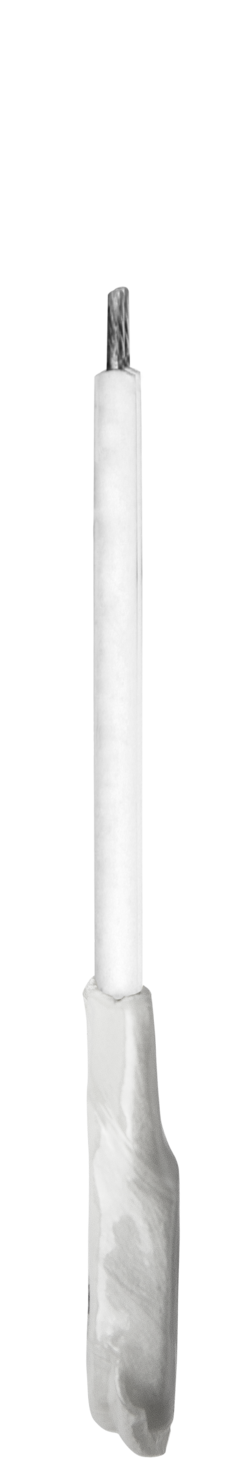

SM1

Power class: 1,6 A to 7,5 A
Type series: F1

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

CF2

Power class: 1,6 A to 7,5 A
Type series: F2

  • normally open
  • resets automatically
  • with connector cables
  • without insulation

SF2

Power class: 1,6 A to 7,5 A
Type series: F2

  • normally open
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • for clip contact
  • without insulation

01-SMD

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • without cables
  • without insulation

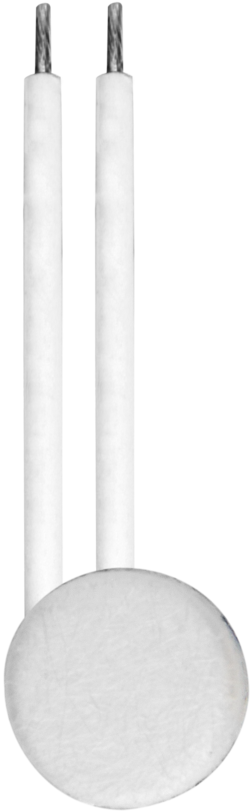

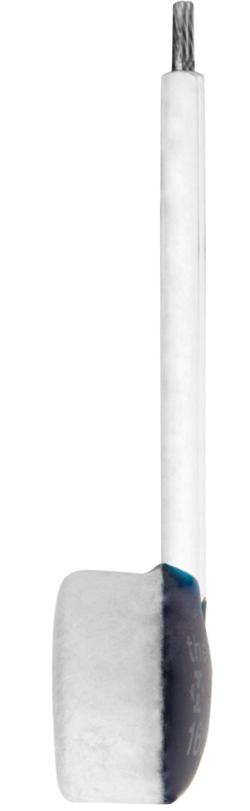

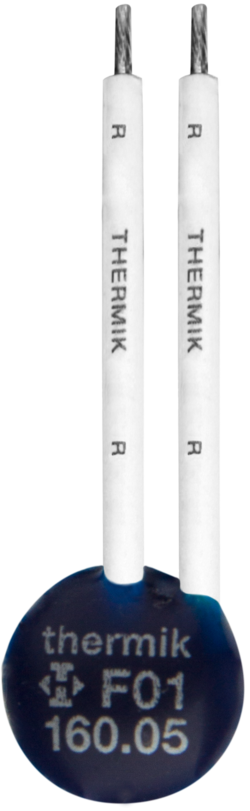

F01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a Nomex® cap

C01-PIN

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with pins
  • without insulation

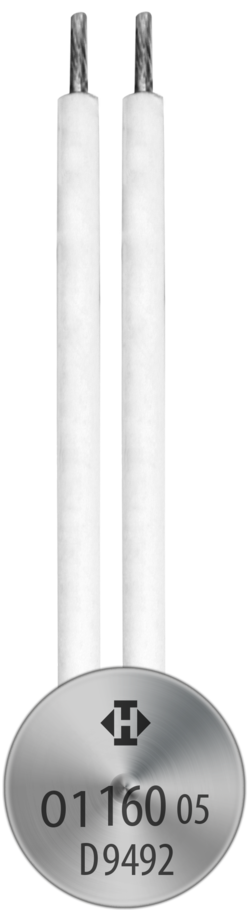

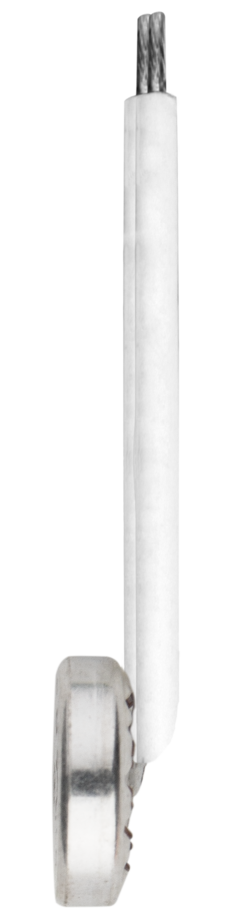

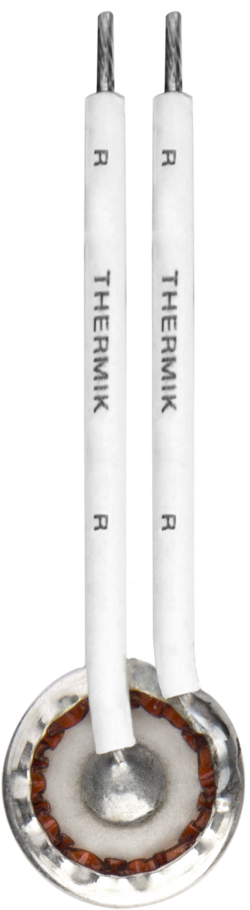

C01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

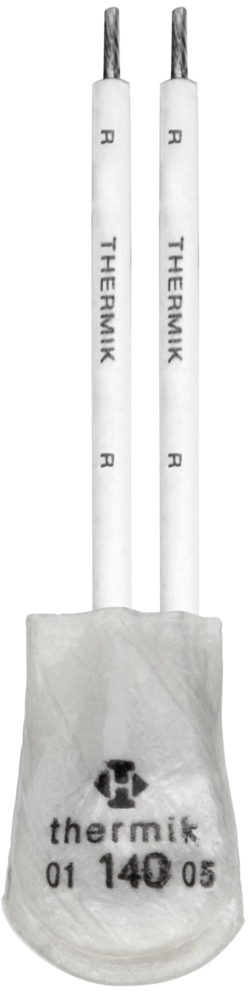

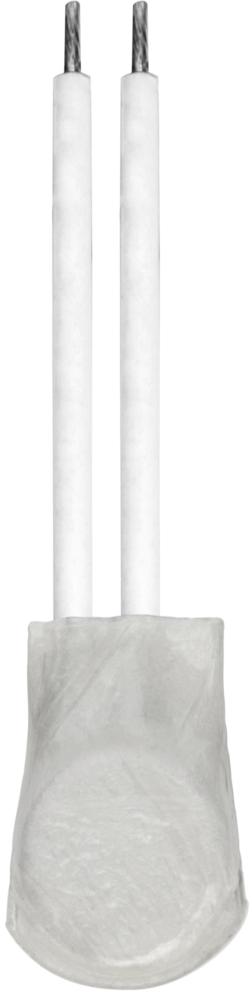

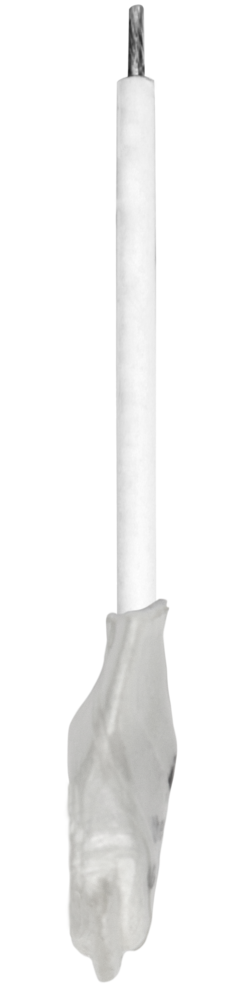

S01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

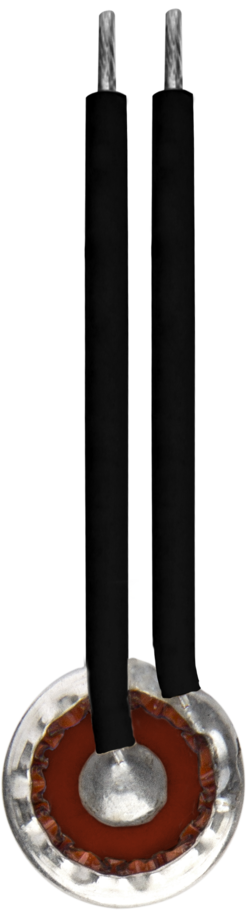

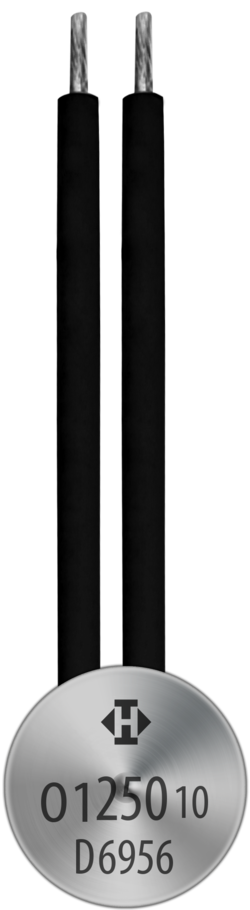

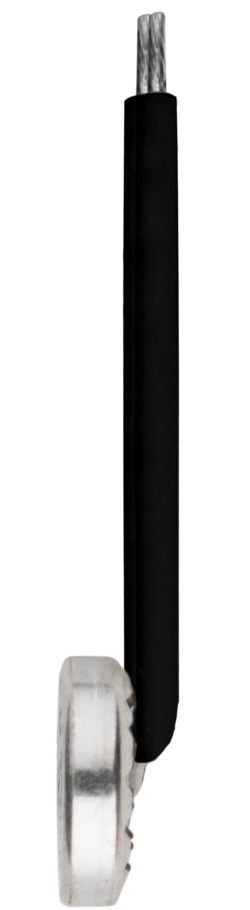

C01-HT

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

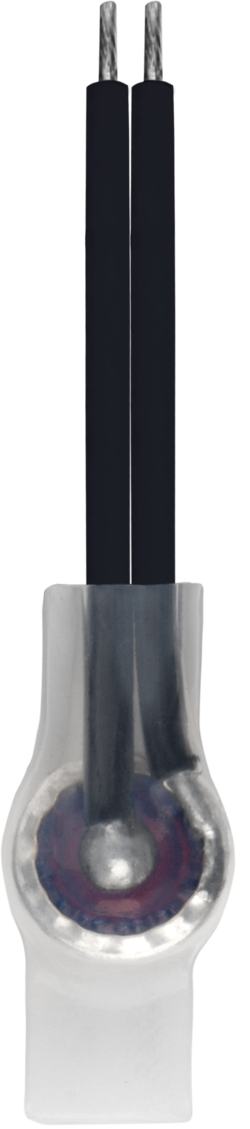

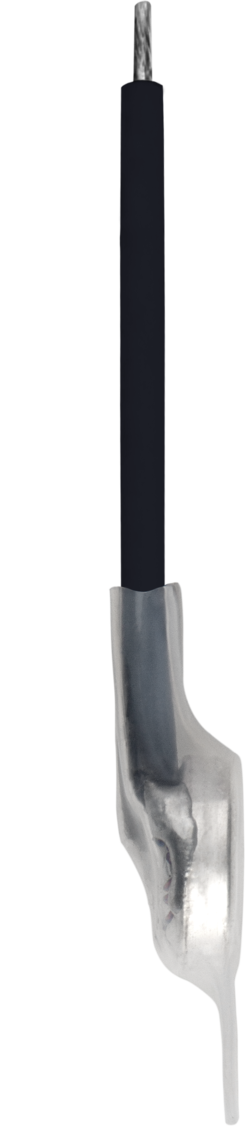

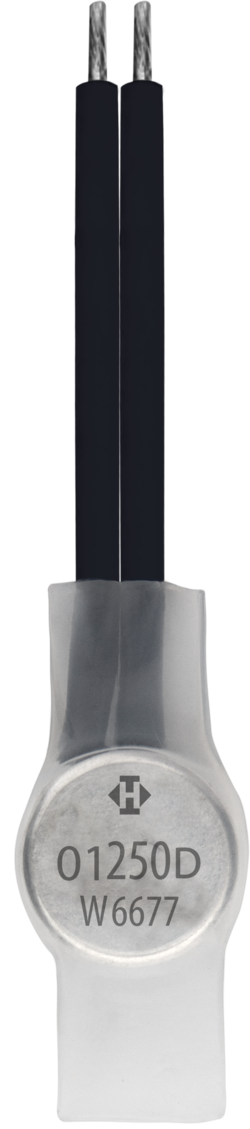

S01-HT

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • PTFE

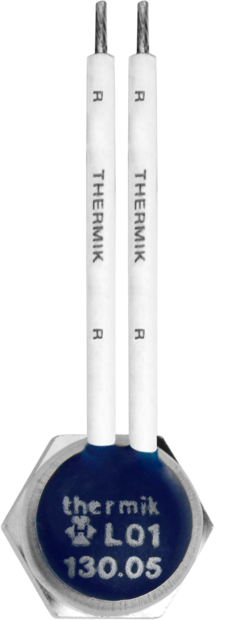

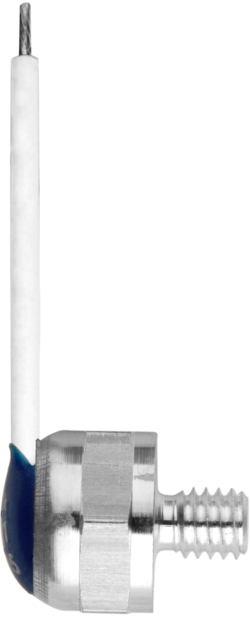

L01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a screw on housing

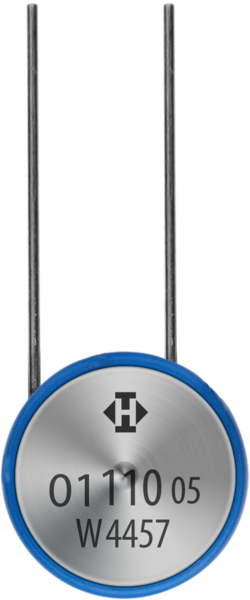

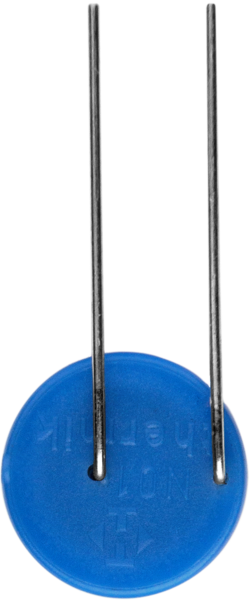

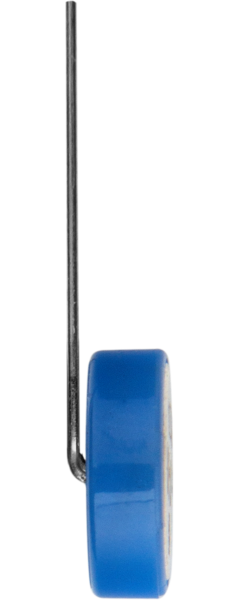

N01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with a connection wire
  • partially insulated in a plastic cap

B01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • Ryton® cap

C02-PIN

Power class: 1,6 A to 7,5 A
Type series: 02

  • normally open
  • resets automatically
  • with pins
  • without insulation

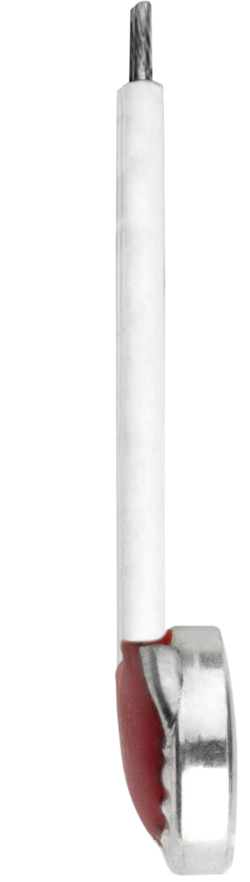

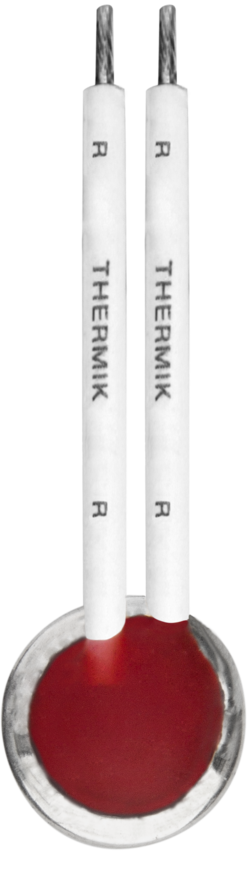

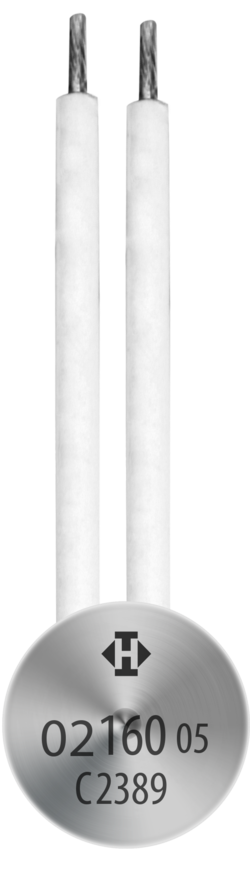

C02

Power class: 1,6 A to 7,5 A
Type series: 02

  • normally open
  • resets automatically
  • with connector cables
  • without insulation

S02

Power class: 1,6 A to 7,5 A
Type series: 02

  • normally open
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

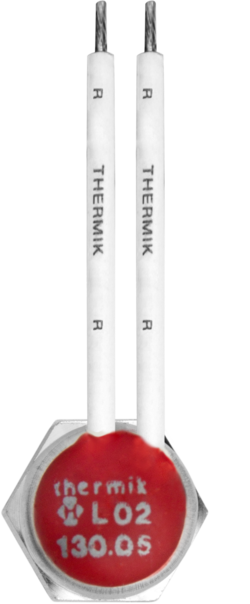

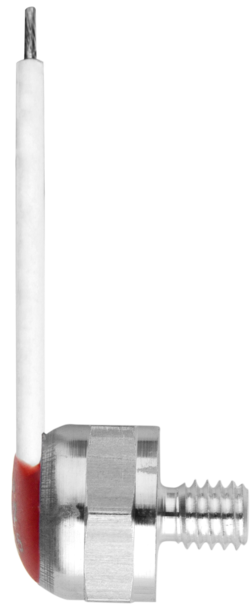

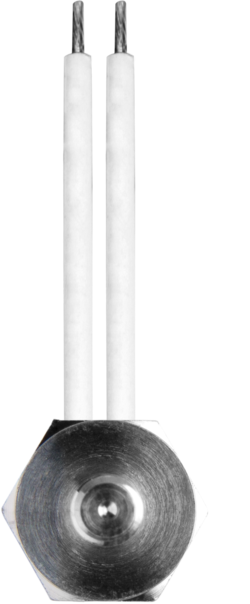

L02

Power class: 1,6 A to 7,5 A
Type series: 02

  • normally open
  • resets automatically
  • with connector cables
  • fully insulated in a screw on housing

N02

Power class: 1,6 A to 7,5 A
Type series: 02

  • normally open
  • resets automatically
  • with a connection wire
  • partially insulated in a plastic cap

CK1 Pin

Power class: 1,6 A to 7,5 A
Type series: K1

  • normally closed
  • resets automatically
  • with pins
  • without insulation

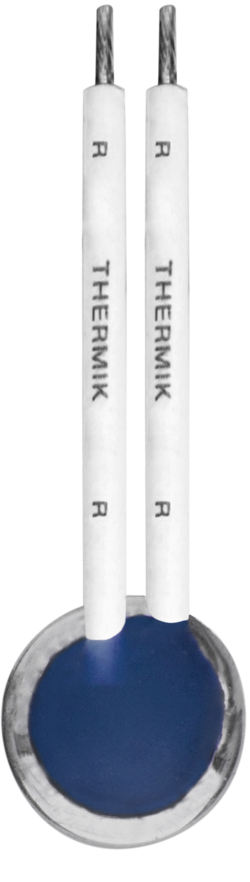

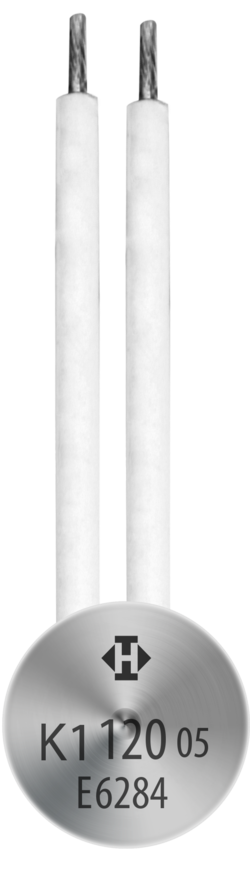

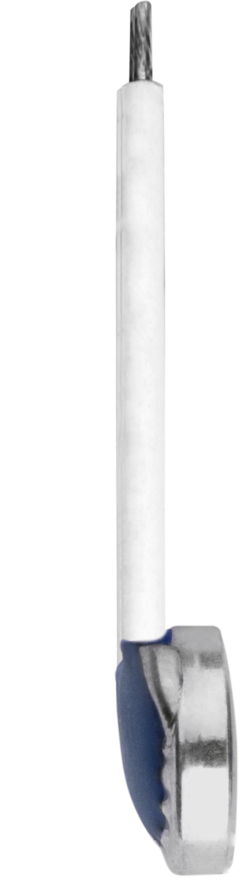

CK1

Power class: 1,6 A to 7,5 A
Type series: K1

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

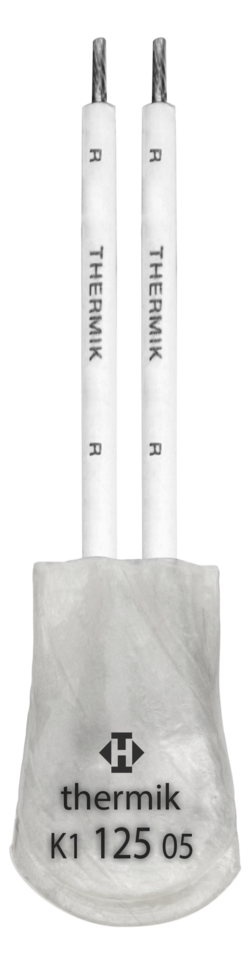

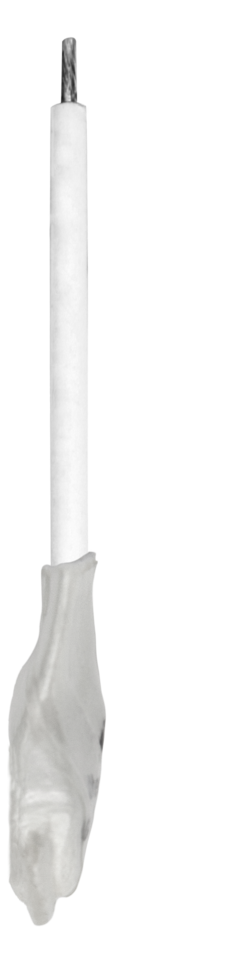

SK1

Power class: 1,6 A to 7,5 A
Type series: K1

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

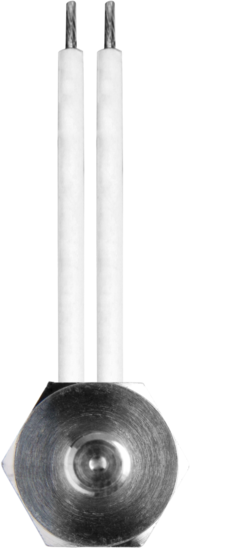

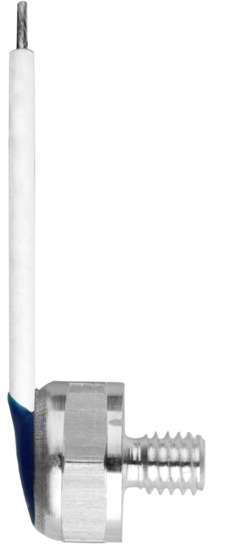

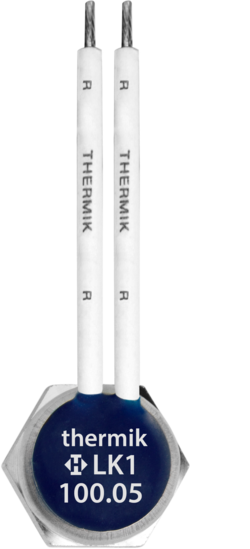

LK1

Power class: 1,6 A to 7,5 A
Type series: K1

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a screw on housing

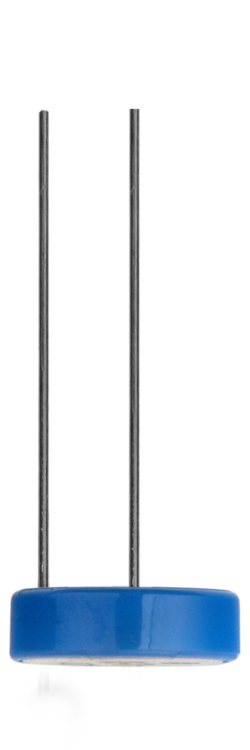

NK1

Power class: 1,6 A to 7,5 A
Type series: K1

  • normally closed
  • resets automatically
  • with a connection wire
  • partially insulated in a plastic cap

CZ1

Power class: 1,6 A to 7,5 A
Type series: Z1

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

SZ1

Power class: 1,6 A to 7,5 A
Type series: Z1

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

P1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • for clip contact
  • without insulation

CP1 Pin

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connection pins
  • without insulation

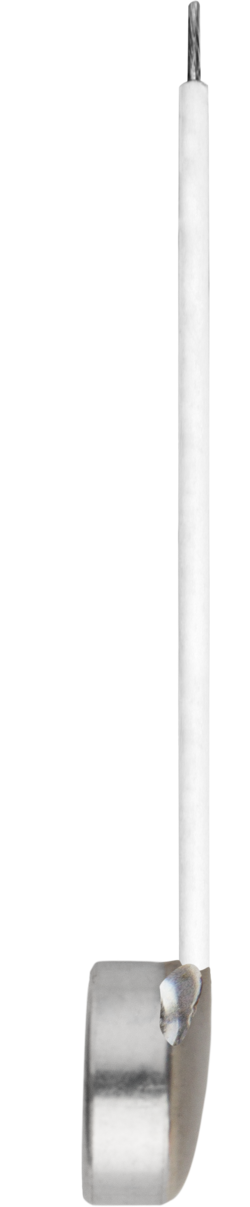

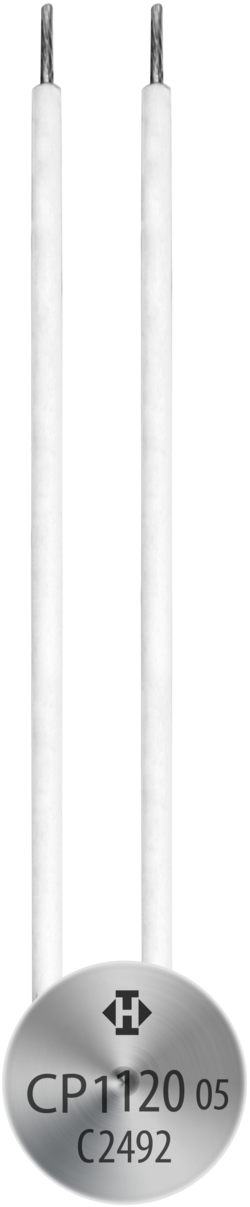

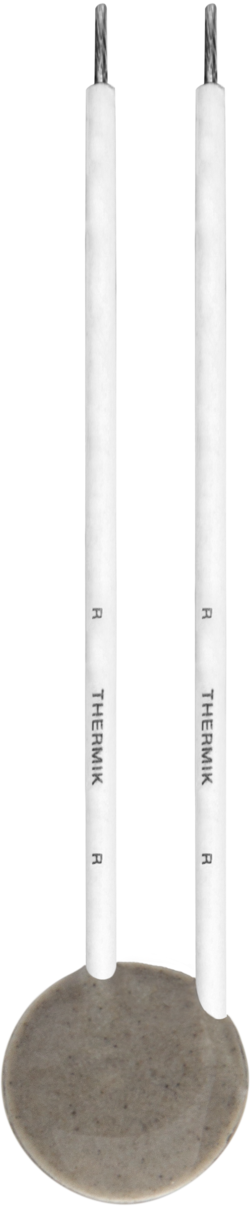

CP1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • without insulation

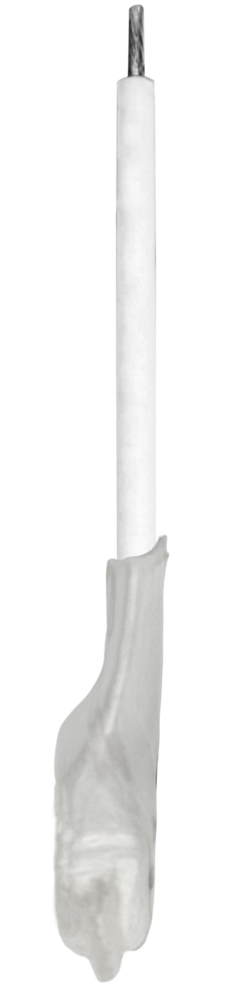

SP1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

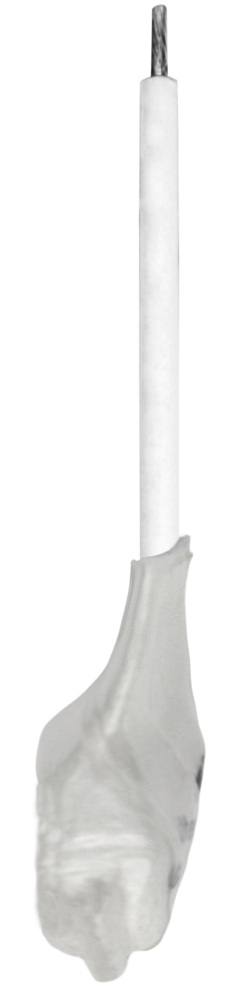

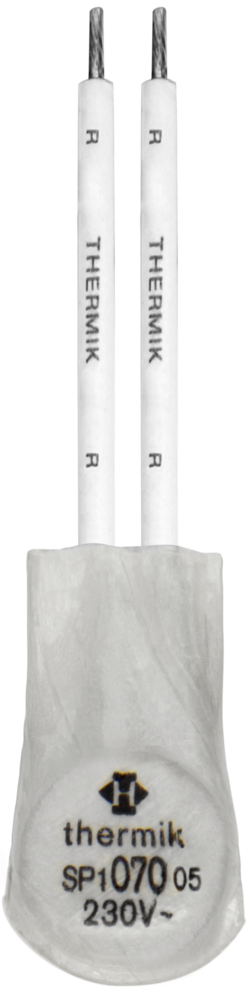

SP1 600N

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

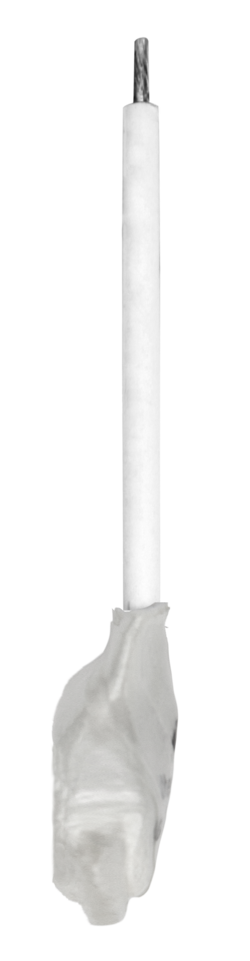

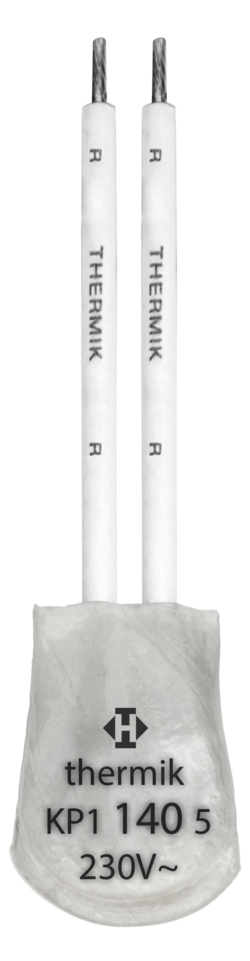

KP1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

CPK

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • without insulation

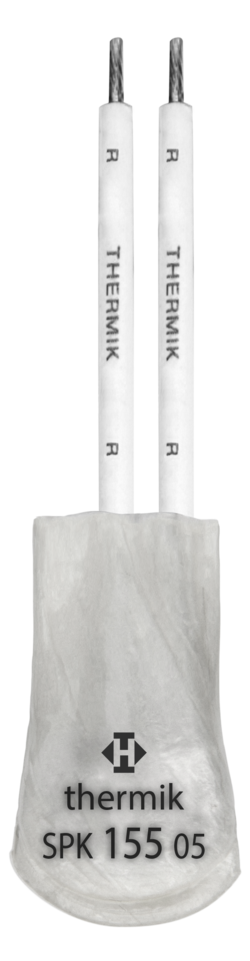

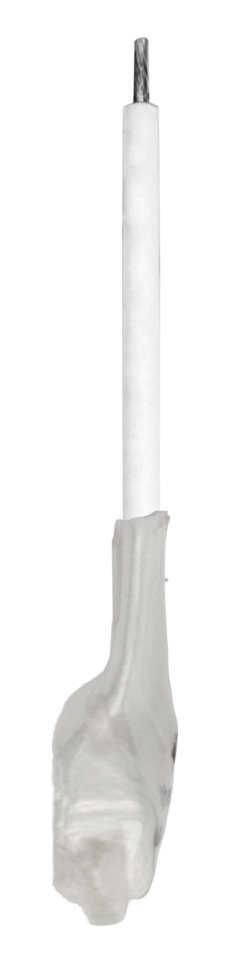

SPK

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

VP1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • fully cast in a Mylar®-Nomex® insulation cap

CW1

Power class: 1,6 A to 7,5 A
Type series: W1

  • normally closed
  • does not reset automatically
  • with connector cables
  • without insulation

SW1

Power class: 1,6 A to 7,5 A
Type series: W1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

CWK

Power class: 1,6 A to 7,5 A
Type series: W1

  • normally closed
  • does not reset automatically
  • with connector cables
  • without insulation

VW1

Power class: 1,6 A to 7,5 A
Type series: W1

  • normally closed
  • does not reset automatically
  • with connector cables
  • fully cast in a Mylar®-Nomex® insulation cap

VWK

Power class: 1,6 A to 7,5 A
Type series: W1

  • normally closed
  • does not reset automatically
  • with connector cables
  • fully cast in a Mylar®-Nomex® insulation cap

C05

Power class: 4,0 A to 25,0 A
Type series: 05

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

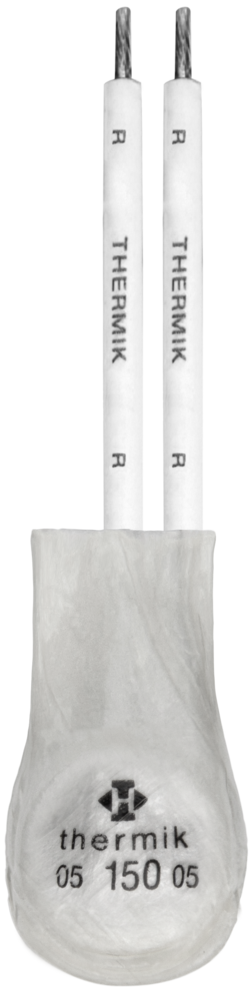

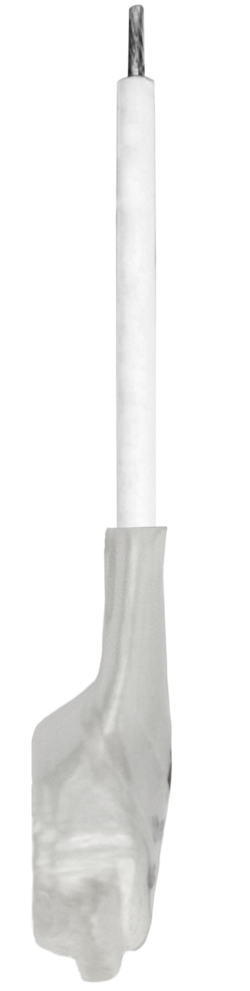

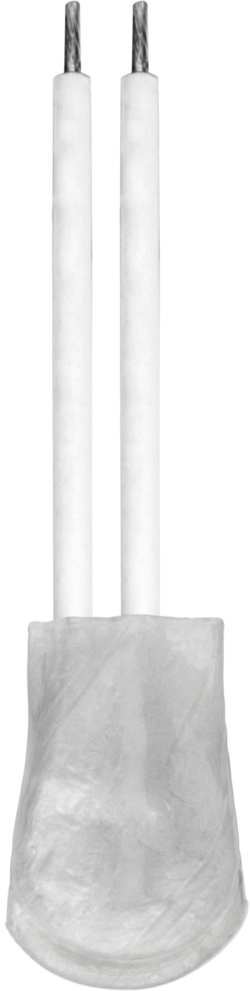

S05

Power class: 4,0 A to 25,0 A
Type series: 05

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

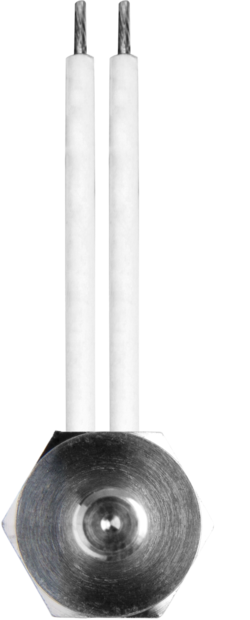

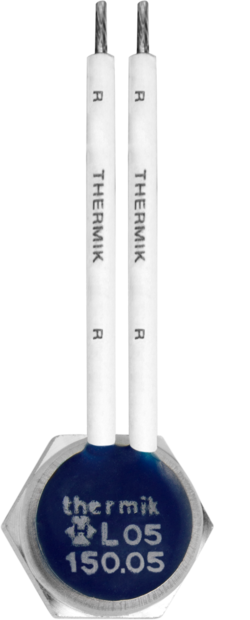

L05

Power class: 4,0 A to 25,0 A
Type series: 05

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a screw on housing

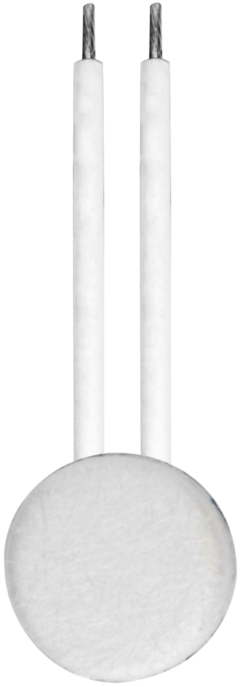

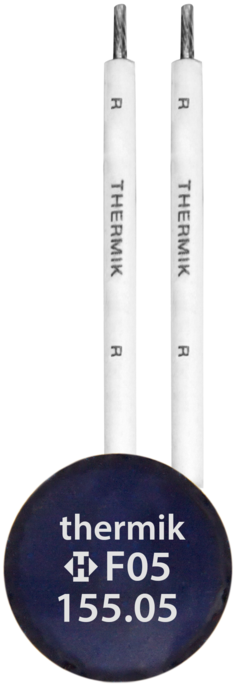

F05

Power class: 4,0 A to 25,0 A
Type series: 05

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a Nomex® cap

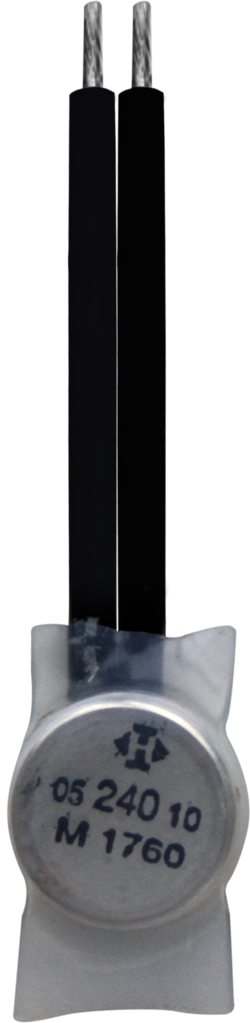

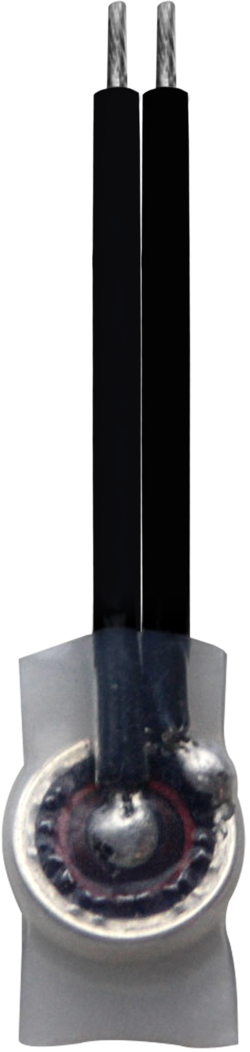

S05-HT

Power class: 4,0 A to 25,0 A
Type series: 05

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®
  • with or without epoxy

C05-HT

Power class: 4,0 A to 25,0 A
Type series: 05

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation
  • with or without epoxy

C09

Power class: 4,0 A to 25,0 A
Type series: 09

  • normally open
  • resets automatically
  • with connector cables
  • without insulation

S09

Power class: 4,0 A to 25,0 A
Type series: 09

  • normally open
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

L09

Power class: 4,0 A to 25,0 A
Type series: 09

  • normally open
  • resets automatically
  • with connector cables
  • fully insulated in a screw on housing

F09

Power class: 4,0 A to 25,0 A
Type series: 09

  • normally open
  • resets automatically
  • with connector cables
  • fully insulated in a Nomex® cap

C06

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

S06

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

F06

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a Nomex® cap

C06-HT

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

S06-HT

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • insulation PTFE

L06

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a screw on housing

P06

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connection pins
  • fully insulated in the attachment housing

H06

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in the attachment housing

V06

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • double-insulated in the attachment housing

B06

Power class: 4,0 A to 25,0 A
Type series: 06

  • normally closed
  • resets automatically
  • with connector cables
  • Ryton® cap

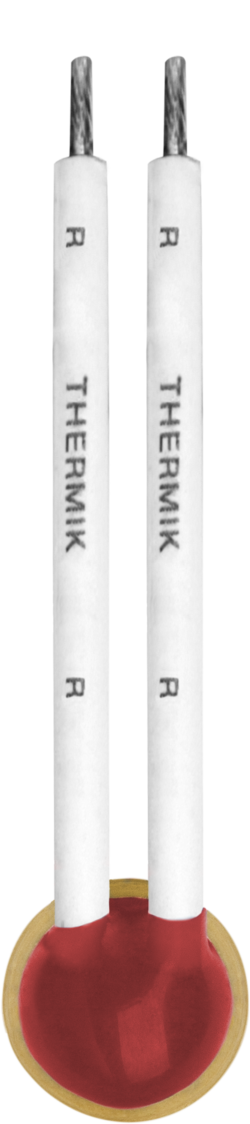

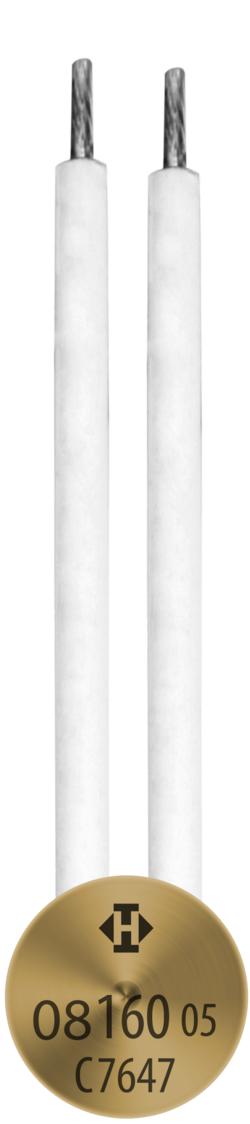

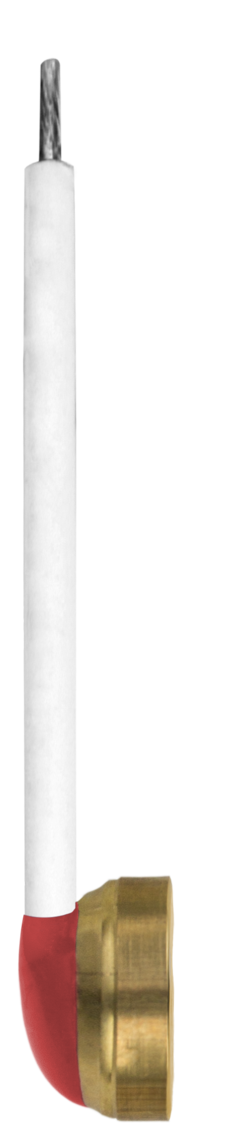

C08

Power class: 4,0 A to 25,0 A
Type series: 08

  • normally open
  • resets automatically
  • with connector cables
  • without insulation

S08

Power class: 4,0 A to 25,0 A
Type series: 08

  • normally open
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

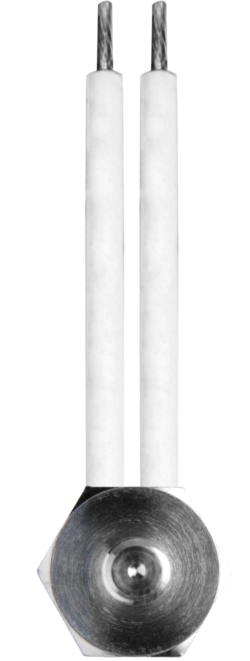

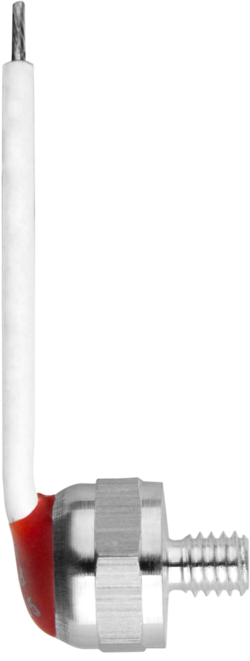

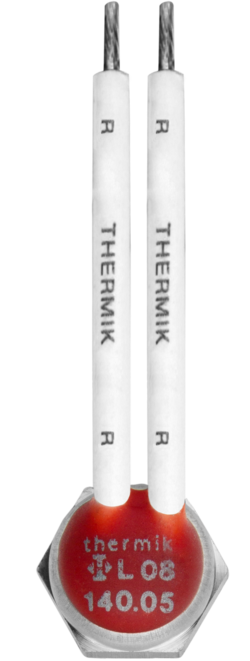

L08

Power class: 4,0 A to 25,0 A
Type series: 08

  • normally open
  • resets automatically
  • with connector cables
  • fully insulated in a screw on housing

P08

Power class: 4,0 A to 25,0 A
Type series: 08

  • normally open
  • resets automatically
  • with connection pins
  • fully insulated in the attachment housing

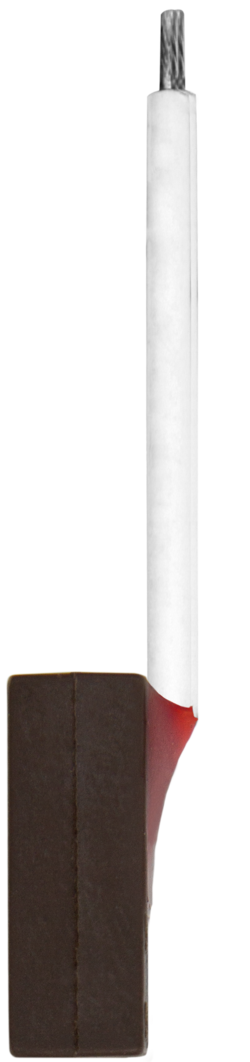

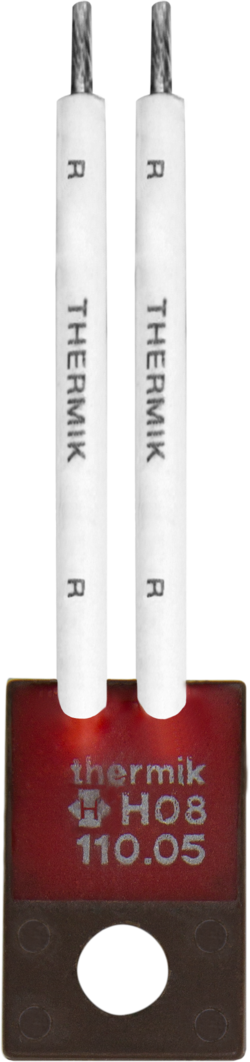

H08

Power class: 4,0 A to 25,0 A
Type series: 08

  • normally open
  • resets automatically
  • with connector cables
  • fully insulated in the attachment housing

V08

Power class: 4,0 A to 25,0 A
Type series: 08

  • normally open
  • resets automatically
  • with connector cables
  • double-insulated in the attachment housing

CY6

Power class: 4,0 A to 25,0 A
Type series: Y6

  • Three-pole (normally closed) for three phase AC current use in the star point
  • resets automatically
  • without insulation
  • with epoxy

SY6

Power class: 4,0 A to 25,0 A
Type series: Y6

  • Three-pole (normally closed) for three phase AC current use in the star point
  • resets automatically
  • Mylar®-Nomex®
  • with epoxy

CYH

Power class: 4,0 A to 25,0 A
Type series: YH

  • Three-pole (normally closed) for three phase AC current use in the star point
  • resets automatically
  • without insulation

SYH

Power class: 4,0 A to 25,0 A
Type series: YH

  • Three-pole (normally closed) for three phase AC current use in the star point
  • resets automatically
  • Mylar®-Nomex®

CR6

Power class: 4,0 A to 25,0 A
Type series: R6

  • normally closed
  • does not reset automatically
  • with connector cables
  • without insulation

SR6

Power class: 4,0 A to 25,0 A
Type series: R6

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

CH6

Power class: 13,5 A to 42,0 A
Type series: H6

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

SH6

Power class: 13,5 A to 42,0 A
Type series: H6

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

CRH

Power class: 13,5 A to 42,0 A
Type series: RH

  • normally closed
  • does not reset automatically
  • with connector cables
  • without insulation

SRH

Power class: 13,5 A to 42,0 A
Type series: RH

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

CH5

Power class: 25,0 A to 75,0 A
Type series: H5

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

SH5

Power class: 25,0 A to 75,0 A
Type series: H5

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

CXO

Power class: 25,0 A to 75,0 A
Type series: XO

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

SXO

Power class: 25,0 A to 75,0 A
Type series: XO

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

PTC thermistors

SNM

Type series: PTC thermistors

  • with connector cables
  • Mylar®-Nomex®

STM

Type series: PTC thermistors

  • with connector cables
  • PTFE

SKM

Type series: PTC thermistors

  • with connector cables
  • insulation PVDF (KYNAR®)

LTM

Type series: PTC thermistors

  • with connector cables
  • fully insulated in a screw on housing

SSM

Type series: PTC thermistors

  • with connector cables
  • Mylar®-Nomex®

TPR

Type series: PTC thermistors

  • with connector cables
  • Epoxy

Thermik products – powerful thermal protectors and thermistors

Our products for thermal protection (temperature limiters, temperature controllers, temperature monitors) are characterised by improved switching behaviour and a longer service life. In conventional thermal protection systems, bimetallic disks are subject to a general aging process. The special system of Thermik for thermal protectors, however, reduces the mechanical load on the discs. These are called continuously working bimetallic disc. This form of bimetal disc has many advantages over conventional bimetal disc arrangements. The general characteristics of our thermal protectorsare: a higher working capacity, better long-term stability and the precise switching point accuracy. In addition, the design of our products is characterised by efficient use of space (miniaturisation) and a simple geometry that also allows higher mechanical loads.

Does our current range of thermal protection products not meet your needs? Then feel free to contact us.

With the know-how of years of experience in the field of customized solutions for temperature limiter and temperature protection, we are happy to advise you on your individual request and to develop a product for you that meets your temperature protection requirements.

More about the Thermik System
ContactContact
Sales
+49 (0) 3632 5412-110
Headquarter
+49 3632 5412-0
Go to top To the top
