P1 series

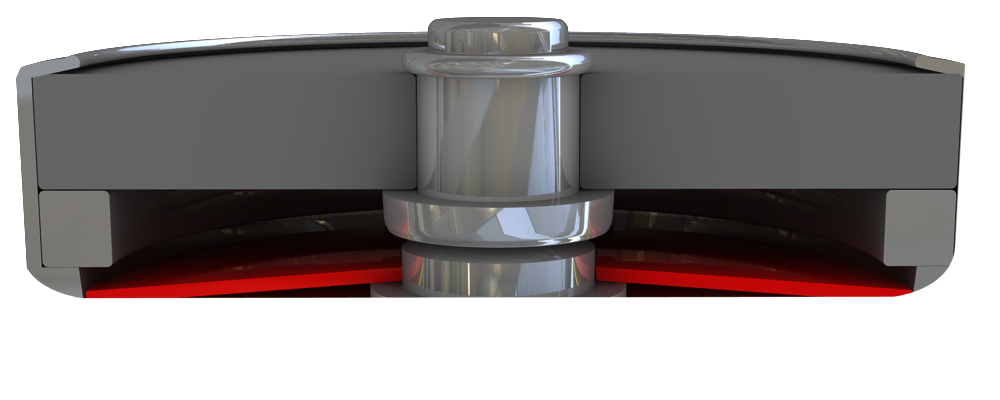

The switchgear of type series P1 is fixed in a positive lock and is self-aligning between the floor of a conductive housing (1) and a PTC cap made from barium titanate (2) which sticks out from a stationary silver contact (6). At the same time, the spring snap-in disc (3) which forms the current transfer element bears the movable contact (4) and discharges the flow of current and self-heating from the bimetallic disc (5). The bimetallic disc (5) is held on the movable contact (4) which sticks out through this without having to be welded or fixed. When the rated switching temperature is reached, the bimetallic disc (5) snaps into its inverted position and pushes the spring snap-in disc (3) downwards. The contact is abruptly opened and the temperature rise of the device to be protected is disrupted. The PTC resistance (2) connected in parallel now sustains the operating voltage and deploys a defined electrical heating output on the bimetallic disc (5) regardless of the ambient temperature and permanently sustains it above its springback temperature so that the switch gear cannot reset. The contact remains open. The Thermal protectors can only cool down again and switch to the original closed state when the external operating voltage is no longer applied and/or disconnection from the mains.

Products in the P1 range

P1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • for clip contact
  • without insulation

CP1 Pin

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connection pins
  • without insulation

CP1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • without insulation

SP1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

SP1 600N

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

KP1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

CPK

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • without insulation

SPK

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • Mylar®-Nomex®

VP1

Power class: 1,6 A to 7,5 A
Type series: P1

  • normally closed
  • does not reset automatically
  • with connector cables
  • fully cast in a Mylar®-Nomex® insulation cap
