Thermal Protector C05-HT

Power class: 4,0 A to 25,0 A
Type series: 05

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation
  • with or without epoxy
Download datasheet

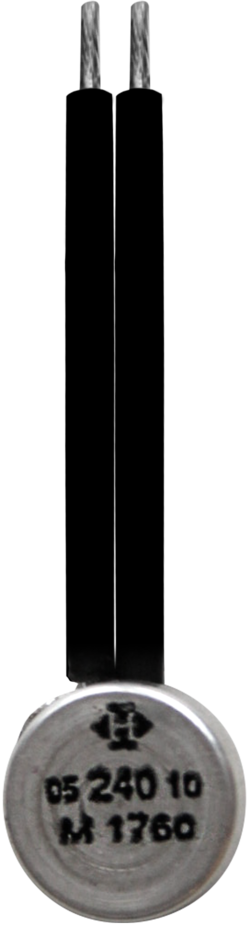

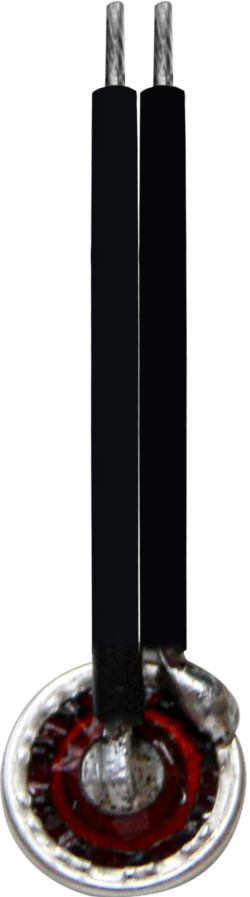

Thermal Protector C05-HT
Thermal Protector C05-HT
Thermal Protector C05-HT

Switchgear consisting of a movable silver contact (1), a contact bearer (2), a spring snap-in disc (3) and a bimetallic disc (4) which is riveted into one another, undetachable and fixed in a positive lock and self-aligning between a conductive, heat-transferring housing (5) and a contact cap made of steel (6) that is insulated from it, plus a stationary countercontact (7). At the same time, the switchgear is carried by the spring snap-in disc (3) acting as a transfer element for electric current which is held between a supporting collar and a circumferential ring. As such, the bimetallic disc (4) underlying it, that is also stuck out from the movable contact (1), can continuously work (exposed) by mechanical loads without the contact pressure defined by the spring snap-in disc (3) diminishing. As soon as the bimetallic disc (4) reaches its rated switching temperature, it effectively springs against the throw force of the spring snap-in disc (3) into its inverted position. The contact is abruptly opened. The temperature will now fall, the bimetallic disc (4) will only snap back upon reaching a defined reset temperature and the contact is closed again.

Technical specifications

Nominal switching temperature (NST) in 5°C
205 °C - 250 °C
Tolerance (standard)
±10 K
Reverse switch temperature (RST)
UL
120° C ±15 K
VDE
≥ 35 °C
(defined reset temperature possible on customer request)
Installation height from
6.0 mm
Diameter
11.0 mm
Resistance to impregnation
suitable
Suitable for installation in protection class
I
Pressure resistance to the switch housing
300 N
Standard connection
Lead wire 0.5 mm² / AWG20
Operating voltage range AC
up until 500 V AC
Rated voltage AC
250V
Rated current AC cos ϕ = 1.0 / cycles
6.3 A / 1,000
Rated current AC cos ϕ = 0.6 / cycles
4.0 A / 1,000
Total bounce time
< 1 ms
Contact resistance (according to MIL-STD. R5757)
≤ 50 mΩ
Vibration resistance at 10 ... 60 Hz
100 m/s²

Approbation

VDE ENEC
