01 series

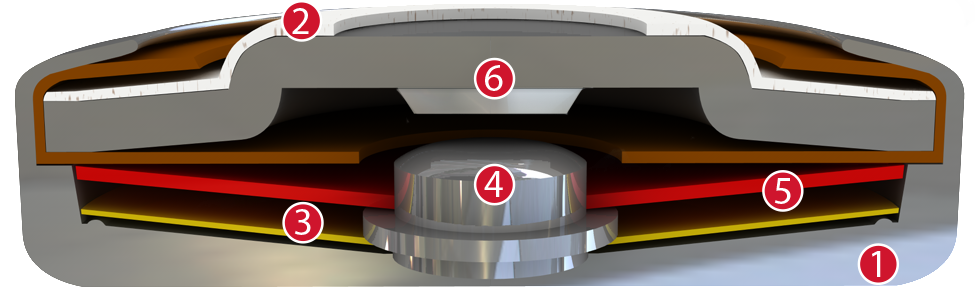

The switchgear of type series 01 is fixed in a positive lock and is self-aligning between the floor of a conductive housing (1) and a contact cap which is made of steel (2) and insulated from it, plus an integrated stationary silver contact (6) which closes the housing like a button cell. At the same time, the spring snap-in disc (3) which forms the current transfer element bears the movable contact (4) and discharges the flow of current and self-heating from the bimetallic disc (5) by exercising consistent, steady contact pressure. The bimetallic disc (5) is held on the one movable contact (4) which sticks out through this without having to be welded or fixed. As such, it can continually work (exposed) and only reacts to the ambient temperature in the device to be protected. When the rated switching temperature is reached, the bimetallic disc (5) snaps into its inverted position and pushes the spring snap-in disc (3) downwards. The contact is abruptly opened and the temperature rise of the device to be protected is disrupted. If the ambient temperature now falls, the bimetallic disc (5) snaps back into its start position when reaching the defined reset temperature and the contact is closed again.

Products in the 01 range

01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • for clip contact
  • without insulation

B01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • Ryton® cap

F01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a Nomex® cap

C01-PIN

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with pins
  • without insulation

C01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

S01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • Mylar®-Nomex®

C01-HT

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • without insulation

S01-HT

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • PTFE

L01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with connector cables
  • fully insulated in a screw on housing

N01

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • with a connection wire
  • partially insulated in a plastic cap

01-SMD

Power class: 1,6 A to 7,5 A
Type series: 01

  • normally closed
  • resets automatically
  • without cables
  • without insulation
